Nozzles: Definition, Types, and Usage Areas

Nozzles are devices that enable the controlled spraying of fluids such as liquids, gases, or vapors. Used in industries such as manufacturing, agriculture, food, pharmaceuticals, and many others, nozzles serve various applications with different spray patterns, flow rates, and distribution models. This article will provide a comprehensive review of nozzle types, operating principles, usage areas, and technical specifications.

1. What is a Nozzle?

A nozzle is generally a capped or pointed device used to direct, distribute, or spray a fluid into an environment. Nozzles, which allow water, air, gases, or chemical liquids to be sprayed at high speed, in a specific shape and pattern, play a critical role in a wide variety of applications. Nozzles are often used in automated systems, but manually operated models are also available.

The basic function of nozzles is to regulate the pressure, speed, and direction of the fluid. A well-designed nozzle ensures that the fluid is directed as desired and to the target in the most efficient way.

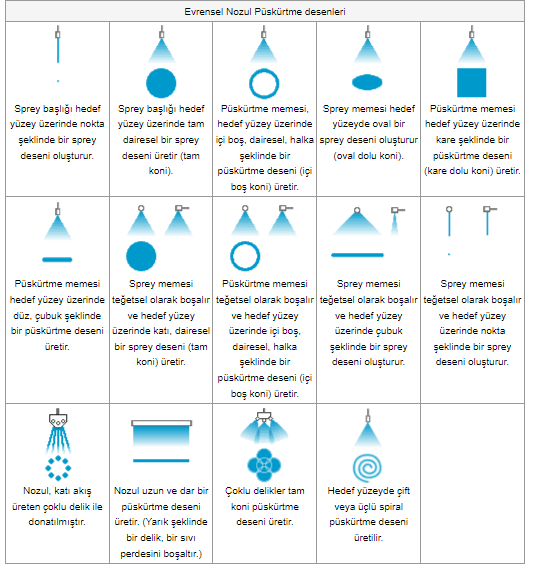

2. Nozzle Types

The design of nozzles varies depending on the intended use and the type of fluid being sprayed. Below are the most commonly used nozzle types and their features:

a) Full Cone Nozzle

Full cone nozzles spray liquid in a 360-degree rotation and distribute liquid droplets homogeneously. They are generally preferred in systems operating at high flow rates and low pressures. Ideal for situations where water or chemicals need to be spread.

Usage Areas: Cooling, washing, spray coating, steam distribution.
Features: High flow rate, wide distribution angle (90°-180°), used in water or liquid applications.
b) Flat Jet Nozzle

Flat jet nozzles spray liquid in a horizontal plane, spreading it over a wide area. The spray pattern is strip-shaped and usually forms fine droplets. Ensures uniform and homogeneous distribution of water, gas, and chemicals.

Usage Areas: Irrigation in agriculture, industrial cleaning, automatic tank cleaning.
Features: Uniform distribution, low droplet size, wide spray area.
c) Hollow Cone Nozzle

Hollow cone nozzles spray liquid in a conical structure, leaving a gap in the middle. Used in high-pressure systems, they direct the liquid more intensively towards the target. These nozzles are particularly suitable for systems that provide homogeneous spraying of liquids.

Usage Areas: Irrigation in farms, chemical spraying, cleaning, lubrication.
Features: High pressure, intense spray, carefully directed spray.
d) Air Atomizing Nozzle

Air atomizing nozzles create a fine spray by mixing air and liquid. These nozzles are especially used for processes requiring fine droplets and high precision. Suitable for both liquid and gas-based fluids.

Usage Areas: Paint spraying, spray drying, gas capture.
Features: Fine droplet sizes, controlled spray.
e) Pinch Valve Nozzle

Pinch valve nozzles provide a system that controls the liquid by passing it through a pipe, opening and closing with pressure. These nozzles are used in systems requiring more precise flow control.

Usage Areas: Flow control in industrial lines, water treatment plants.
Features: Flow control, tight closure, correct amount of liquid passage.
3. Operating Principle of Nozzles

The operating principle of nozzles varies depending on the type of fluid and the desired spray pattern. Basically, nozzles create the desired shape and droplet size by directing the fluid at a certain speed and pressure. The nozzle head regulates the outlet of liquid or gas and controls the spray pattern, speed, and direction.

Pressure: If the nozzle operates under high pressure, the liquid is sprayed in finer droplets. In low-pressure systems, the droplets are larger.
Speed: As the outlet speed of the fluid increases, the spray becomes finer and more homogeneous. However, at very high speeds, the fluid can lead to irregular droplet sizes.
Droplet Size: Nozzle design directly affects droplet size. Droplet size determines the spread pattern of the sprayed substances during application.
4. Usage Areas of Nozzles

Nozzles are used in a wide range of applications from industrial to agricultural. Some of the main usage areas are:

a) Industrial Cleaning

High-pressure nozzle systems are used to clean pipelines, tanks, and machines in industrial areas. These nozzles effectively remove dirt, oils, and residues.

b) Agriculture

Spray nozzles are widely used for irrigation and pesticide spraying. Especially in farms and agricultural areas, it plays an important role in the homogeneous application of water and chemicals to plants.

c) Food and Beverage Industry

Nozzles are used for liquid spraying, coating processes, and cooling purposes in food processing facilities. It is also used in beverage production to provide homogeneous mixtures.

d) Automotive and Painting

In the automotive industry, spray nozzles are used for painting processes. Precise nozzles are preferred for the proper application of paint and other liquids.

e) Chemical and Petrochemical Industry

In chemical processes, nozzles are used for the proper spraying of solvents or acidic substances. Nozzles are also used in combustion processes and in mixing gases with liquids.

5. Nozzle Selection and Performance

Nozzle selection depends on the type of application, desired spray characteristics, and the properties of the fluid used. To ensure efficient operation of nozzles, appropriate pressure, flow rate, spray angle, and droplet size must be considered.

Conclusion

Nozzles are indispensable tools for the proper distribution, direction, and spraying of liquids, gases, and vapors in various industrial applications. A well-chosen nozzle increases process efficiency, improves product quality, and reduces operational costs. Knowing the different nozzle types and features is critical for proper application.
